LATUS

LATUS

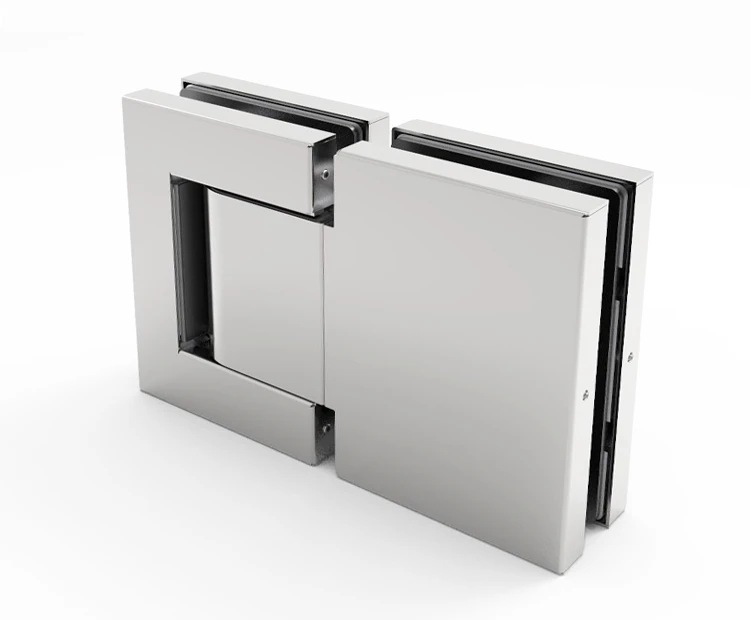

Double-action hydraulic hinge for glass doors

DESCRIPTION

Double-action hinges with hydraulic technology and two-speed closing control for glass doors mounted to a wall or glass, for doors up to 100 kg and a maximum width of 1000 mm. Easy installation and adjustment, with concealed covers and screws. Ideal for interior doors in residential or commercial use.

TECHNICAL SPECIFICATIONS

APPLICATION: interior

MAXIMUM LOAD: LIGHT KIT Doors up to 70 kg STANDARD KIT Doors up to 100 kg

DOOR WIDTH: LIGHT KIT 900 mm/STANDARD KIT 1000 mm

INSTALLATION TYPE: Wall-to-glass mounting with centred or offset flap / glass-to-glass mounting

Glass thickness: 8-14 mm

Door hold-open: 0º + 70º/75º to 95º

Speed adjustment: 75º/70º to 0º

Available without hold-open: YES

FINISHES

Polished stainless steel IBPolished stainless steel
Satin stainless steel ISSatin stainless steel
Polished brass LBPolished brass
Satin brass LSSatin brass
Natural anodised ANNatural anodised
Black anodised ABBlack anodised

DOWNLOADS

WHERE TO BUY

Frequently asked questions

What is the difference between a hydraulic hinge and a hydraulic pivot?

Both systems control the opening and closing movement of a glass door. The difference lies in the design of the fitting, the type of installation and the way it is integrated into the door. The choice should be based on the weight of the glass, the type of opening and the needs of the project.

When is it best to use hydraulic hinges?

Hydraulic hinges are a good option when you want a clean, functional solution with controlled closing built into the fitting itself. They are common on glass doors in offices, shops, interior spaces and projects where an external door closer is to be avoided.

What glass thickness do hydraulic hinges and pivots accept?

The permissible thickness depends on each series and reference. Before choosing the product, check the technical sheet for the minimum and maximum glass thickness, the maximum load and the installation dimensions.

Are they suitable for heavily used glass doors?

Yes, provided the hydraulic hinge or pivot is correctly sized. For doors in heavy use, it is important to check the maximum load, door width, type of opening and mounting conditions.

What are they used for?

They are used on interior glass doors, swing doors, offices, shops, hotels, glazed partitions and professional spaces where controlled closing and a neat installation are needed.
